Argosim GUI

Argosim GUI#

argosim provides an optional PyQt6-based GUI for interactive simulations. It supports array configuration, uv-coverage visualization, and imaging—all without writing code.

Ideal for education, outreach, and rapid prototyping.

To launch the GUI and have access to the custom templates you need to clone the argosim repository:

git clone https://github.com/ARGOS-telescope/argosim.git
cd argosim

Installation#

Running the GUI requires the pyQt6 package, which can be installed with the following command:

pip install "argosim[gui]"

Launching the GUI#

For opening the GUI, run the following command:

python app/argosim-gui.py

Example#

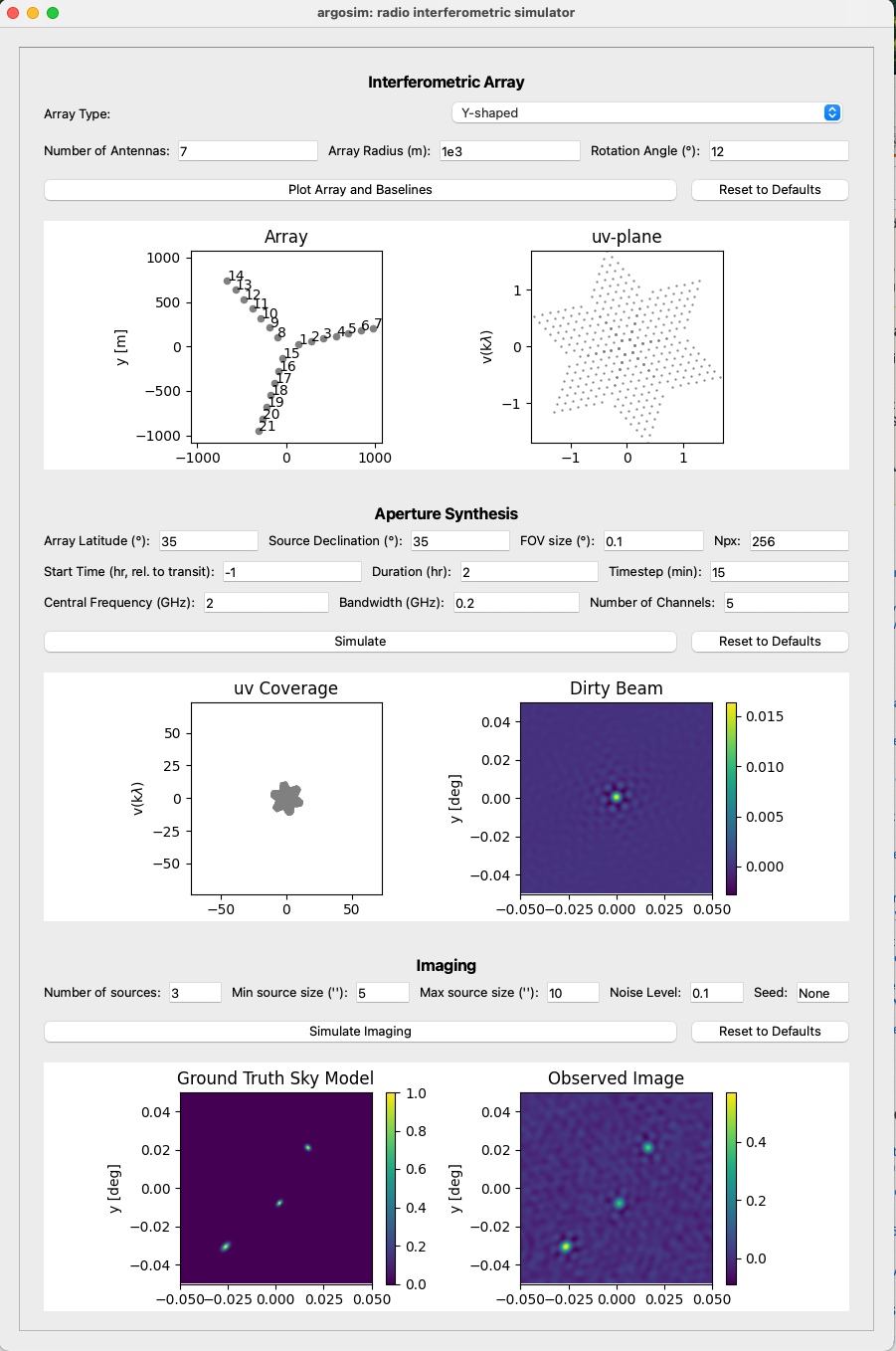

Argosim GUI Screenshot

Argosim graphical user interface (GUI) for radio interferometric simulations.
